Portable 2 SAM Slots Contactless IC Card Reader With External Indicators LED

Brand Name : Mingtech

Model Number : MT3F-JK-A332-DZ

Certification : ,Contactless PBOC3.0 L1,Contact EMV L1,CE,FCC,RHOS,ISO14443

Place of Origin : China

MOQ : 5

Price : Negotiate

Material : PET

Size : 85.5mm*54mm or Customized

Printing : Offset Printing

Chip : TK4100

Frequency : Loco 300oe

Application : Access Control System

Delivery Time : <15 days

Supply Ability : 2500-3000 sets pers day

Payment Terms : T/T, PayPal, Western Union, D/P, CommBank.

Packaging Details : Antistatic package

Contact Now

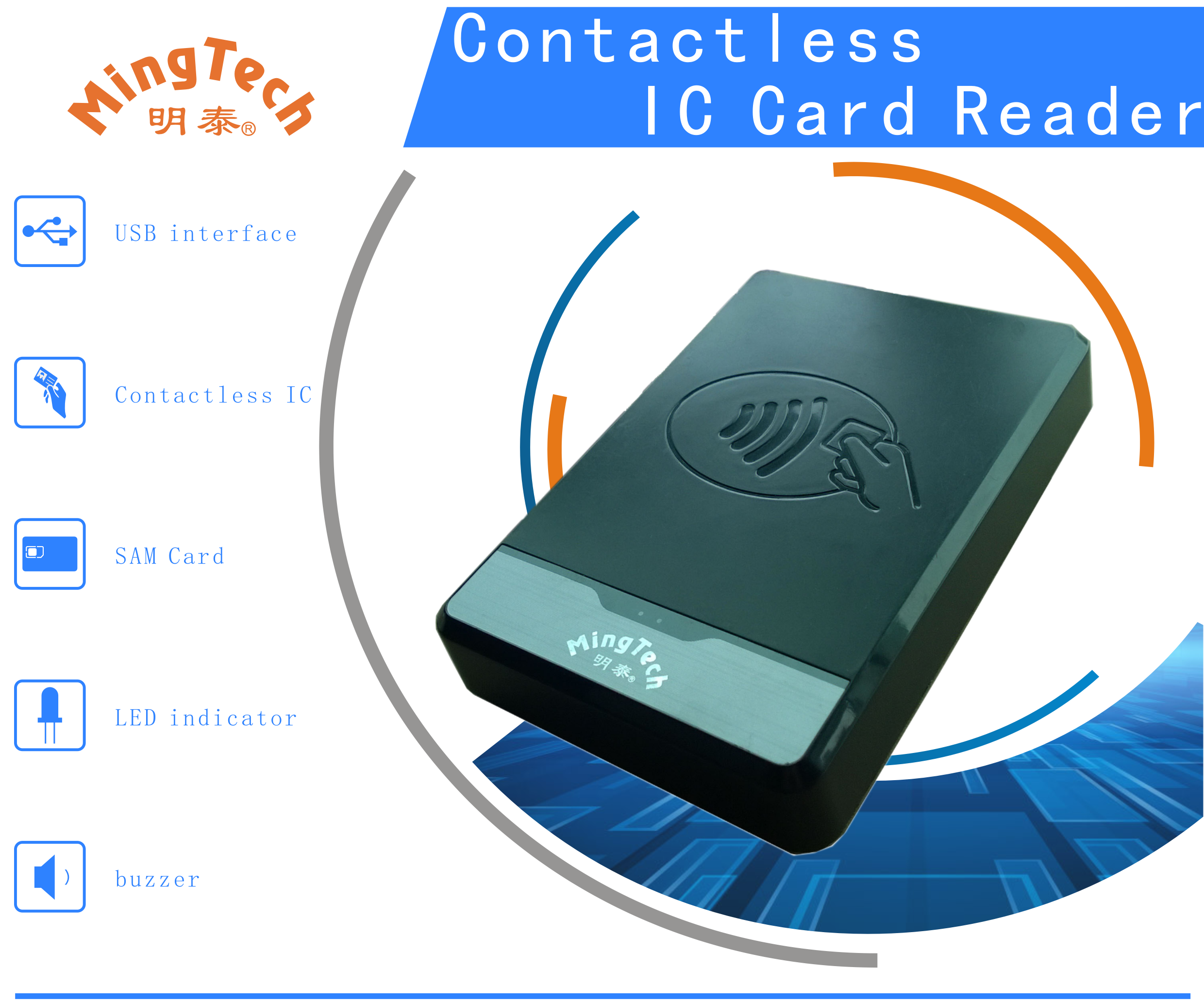

Portable 2 SAM slots with external indicators LED reader.



MT3,MT3F-JK-A332-DZ,ISO14443,Contactless IC Card Reader

Portable 2 SAM Slots Contactless IC Card Reader With External Indicators LED



Features



  • USB2.0 full speed

  • Smart card read/write

  • Standard ISO 14443 type A/B

  • Standard ISO 7816

  • 2 SAM slots

  • 2 LEDs

  • User-controllable buzzer

    OS support Windows XP/7/8/10,Linux/Android

Specifications

 Project  Parameters Of Specifications
 Dimensions  130mm(L)×90mm(W)×27mm(H)
 Power Interface
 Power Source  USB
 Supply Voltage  DC 5V±5%
 Supply Current  ≦300mA
 Cable length, cord  1.8m,Fixed(non-detachable),
 Communication Interface
 Protocol  USB HID
 Speed  USB Full Speed(12Mbps)
 Contactless IC Card Interface
 Standard  Standard ISO14443 Type A&B,S50/S70
 Protocol  ISO14443 /1/2/3/4 T=CL,MIFARE
 Frequency  13.56MHz±7kHz
 Speed  106/212/424Kbps
 Operating Distance  0~30mm
 SAM
 Number  2 Standard SAM Slots
 Standard  ISO 7816 Class A (5V)
 Protocol  T=0 and T=1
Smart card read/write Speed  9600~38400 bps
 Built-in Perpherals
 LED  Two LEDs,Red color LED for power status,Green color LED for operate status
 Buzzer  Monotone
 Device Vision  Support
 Device SN  Support
 Supporting System  Windows XP/7/8/10,Linux/Android5.1 and above
 Working Environment
 Temperature  0℃ ~ 50℃
 Humidity  10% ~ 90% (Non-condensing)
 Technical Support
 API  Windows 32&64bit SDK
 Technical Service  Supply SDK and Demo
 Certifications  Contactless PBOC3.0 L1,Contactless EMV L1, CE, FCC, RHOS



Applications

  • E-government

  • Bank and payment

  • Electronic medical

  • cyber security

  • Access control

  • Public transit
