2 mega pixel with all wide-angle 6.95 inches infrared screen touch, Wall mount Thermometer detector.

Product Categories
Shenzhen MingTech Co.,Ltd
Contact Now

2 mega pixel with all wide-angle 6.95 inches infrared screen touch, Wall mount Thermometer detector.

  • 1
  • 2

Brand Name : Ming tech

Model Number : S70

Certification : Contact PBOC3.0 L1,Contactless PBOC3.0 L1,Contact EMV L1,Contactless EMV L1,CE,FCC,RHOS

Place of Origin : China

MOQ : 1

Price : 120~360 USS

Payment Terms : T/T, PayPal, Western Union, D/P, CommBank.

Supply Ability : 500 per day

Delivery Time : 5-8 days after order fulfilment

Packaging Details : Antistatic package , Wooden

Performance : Combining facial recognize algorithm & 100,000 faces foundation stock

Algorithm : Globally top AI algorithm

Speed : Flashing facial recognize base on AI algorithm

Security : Dual cameras, available in infrared Vivo detection

Interact : 7inhces screen touch+audio interaction

Stable : Android 9.1 system with WLAN

OSI : SDK, available in S/ISV secondary development.

Contact Now




Face recognize with Thermometry AIO

Specification



Application



Face recognize, Access control, Thermometry.




Occasion



Indoor/Outdoor




Appearance



Aluminium alloy,



Camera



Type



RGB



IR




Resolution



2 million pixel



2 million pixel




Aperture



F2.0±5%



F2.0±5%




Focal length



4.3mm±5%



4.3mm±5%




Filling light



Yes



Core



OS



Android 9.1




CPU



S905D3 4x ARM® Cortex™ A55 1.9GHz 64 bit 1.2T NPU




Storage



DDR 2G,storage 8G







Interaction







Screen







6.95 inch , all wide-angle , 170 ° IPS LCD panel ,

resolution 600*1024




Screen Touch



Yes




Body

detection

module



Yes




Thermometer

(Optional)



Precision:0.1℃

Error:≤±0.5℃




Distance:Roughly 50cm




Working Temp:15℃~40℃



Communication



Ethernet



10/100Mbps




WIFI



IEEE802.11b/g/n standard(2.4G)



Activation



Facial



Yes




IC card



Yes



Interface



Plot



USB 2.0*1




Relay



*1




Serial port



RS232*1




Protocol



26bit/34bit protocol



Power source



Input



DC12V/1.5A



Environment



Work Temp



-20℃～60℃




Work

humidity



20%~90%




ESD



IEC61000-4-2,LEVEL3




Security



IP65 (not valid in Thermometer version)





2 mega pixel with all wide-angle 6.95 inches infrared screen touch, Wall mount Thermometer detector.

2 mega pixel with all wide-angle 6.95 inches infrared screen touch, Wall mount Thermometer detector.

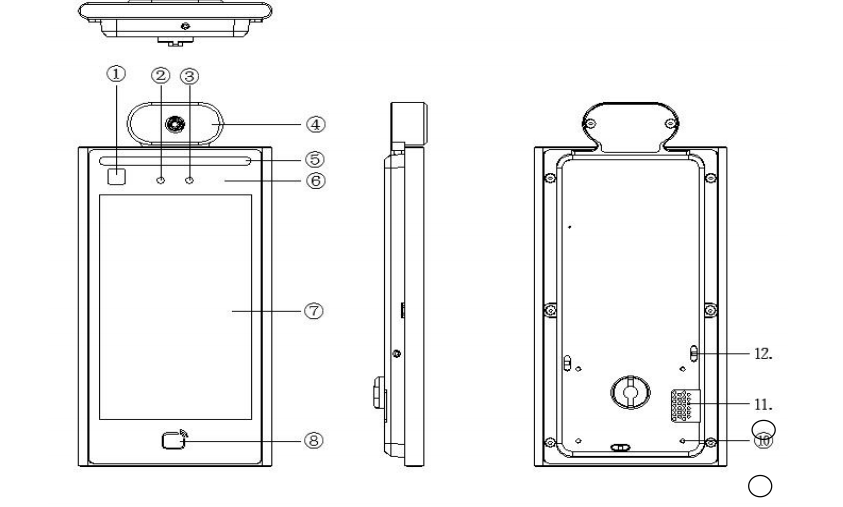

Serials



Specification



①



Infrared fill light



②



IR camera



③



RGB camera



④



Infrared Thermometer(optional)



⑤



White LED fill light



⑥



 Vivo detection(Microwave induction module)

⑦



 Multiple touch capacitive screen touch

⑧

⑨



Card reader

Reserve screws slots ( Thermometer used)



⑩



Reserve screws slots ( Switcher used)



⑪



Speaker



⑫



Reserve screws slots ( Wall mount hanger used)
